Active Area：6mm×6mm

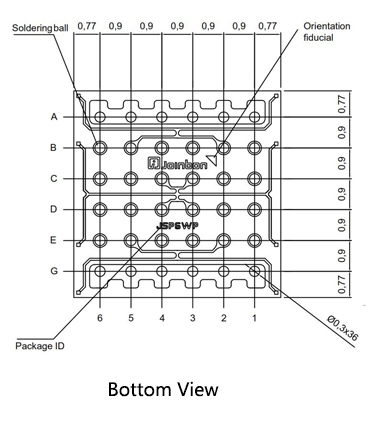

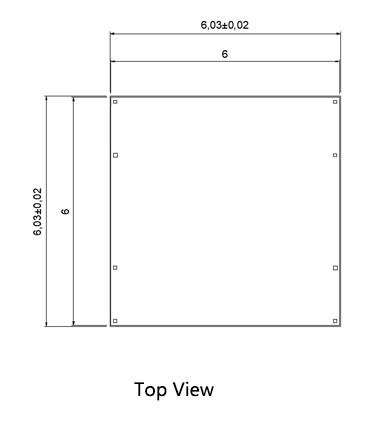

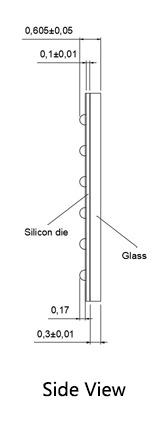

Package Dimension：6.03mm×6.03mm×0.61mm
Pixel Pitch：50μm
No. of Pixels：13852
Fill Factor：70.6%
| Parameter | Value | Condition | Unit |
|---|---|---|---|
| Spectral Response Range | 250-950 | -- | nm |
| Peak Sensitive Wavelenth | 420 | -- | nm |
| Breakdown Voltage | 24.6±0.2 | @25℃ | V |
| Overvoltage | 1-5 | -- | V |
| Peak PDE | 35% | Vov=2V@420nm | -- |
| Gain | 2.1×106 | Vov=2V | -- |
| Rise Time | 1 | Vov=2V | ns |
| Recovery Time Constant | 40 | Vov=2V | ns |
| Dark Count Rate | Typ.：140 Max.：280 | Vov=2V | kHz/mm2 |
| Dark Current | Typ.：3800 Max.：5900 | Vov=2V | nA |
| Temperature Dependency of Vbr | 34.4 | -- | mV/℃ |
| Crosstalk Probability | 3% | Vov=2V | -- |
| Afterpluse Probability | 1.5% | Vov=2V | -- |
| Pixel Capacitance | 170 | Vov=2V | fF |
