Active Area：3mm×3mm

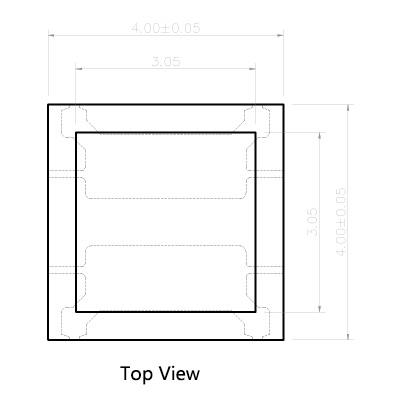

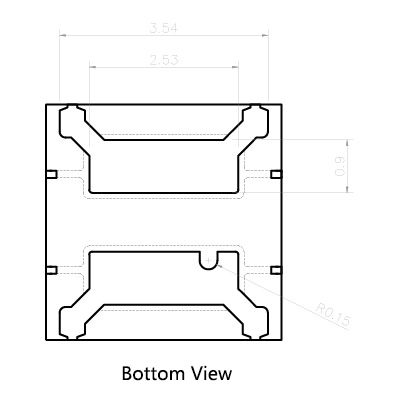

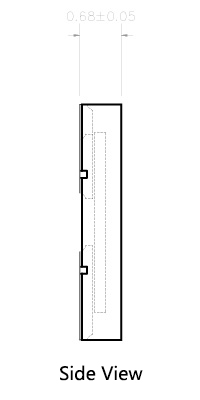

Package Dimension：4.0mm×4.0mm×0.68mm
Pixel Pitch：50μm
No. of Pixels：3364
Fill Factor：70.6%
| Parameter | Value | Condition | Unit |
|---|---|---|---|
| Spectral Response Range | 250-950 | -- | nm |
| Peak Sensitive Wavelenth | 420 | -- | nm |
| Breakdown Voltage | 25±0.2 | @25℃ | V |
| Overvoltage | 1-5 | -- | V |
| Peak PDE | 35% | Vov=2V@420nm | -- |
| Gain | 2.7×106 | Vov=2V | -- |
| Rise Time | 1.3 | Vov=2V | ns |
| Recovery Time Constant | 45 | Vov=2V | ns |
| Dark Count Rate | Typ.：124 Max.：288 | Vov=2V | kHz/mm2 |
| Dark Current | Typ.：714 Max.：1600 | Vov=2V | nA |
| Temperature Dependency of Vbr | 35.3 | -- | mV/℃ |
| Crosstalk Probability | 3.0% | Vov=2V | -- |
| Afterpluse Probability | 2.7% | Vov=2V | -- |
| Pixel Capacitance | 165 | Vov=2V | fF |
